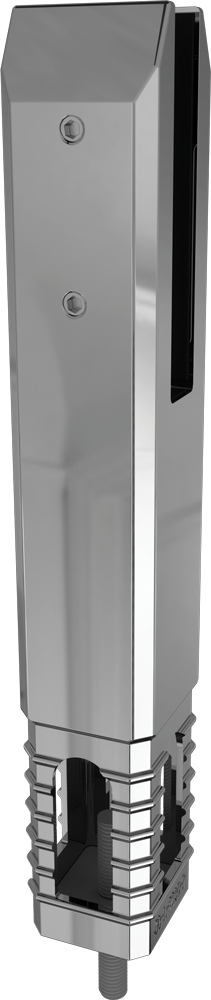

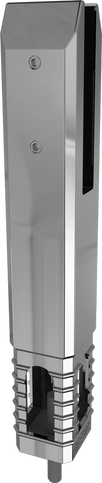

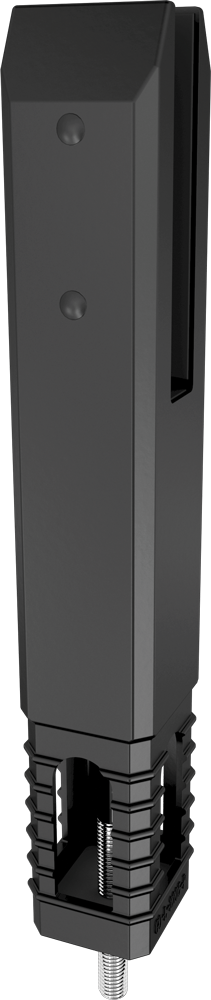

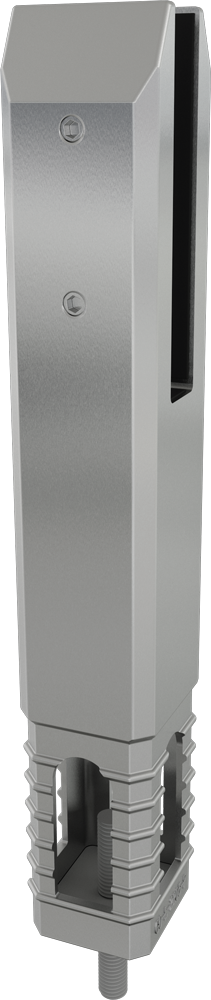

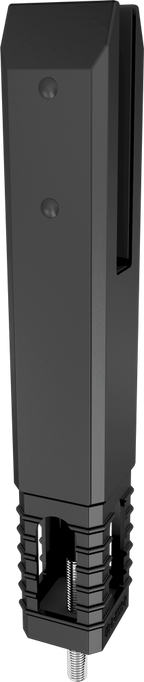

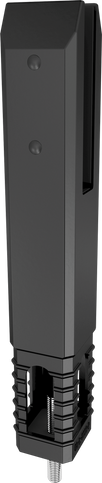

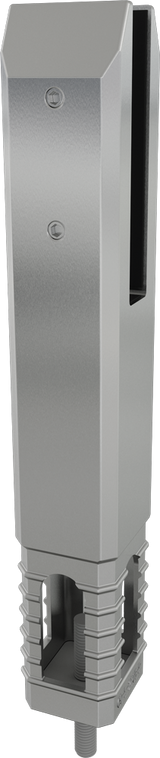

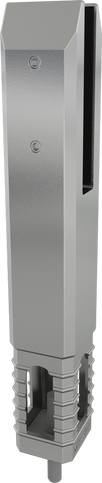

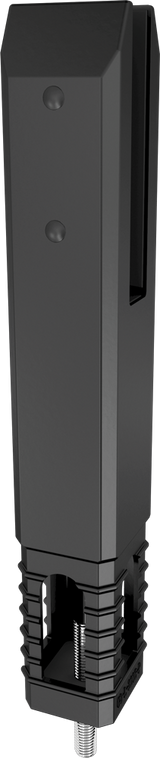

Madrid Pool Extended Spigot – Various Finishes

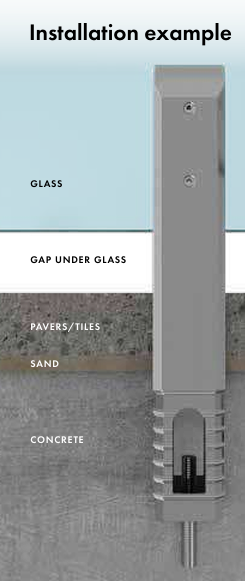

The Extended Pool Madrid spigot is ideal where extra depth is required for core drilling – for example, core drilling through pavers to concrete below.

• Duplex stainless steel 2205
• Designed for pool fencing load requirements
• Ideal where deeper core drilling is required
• Use with standard madrid dress rings
• 45mm front profile
• Earthing terminal included
• Recessed friction plate provides a neat finish and easy Installation

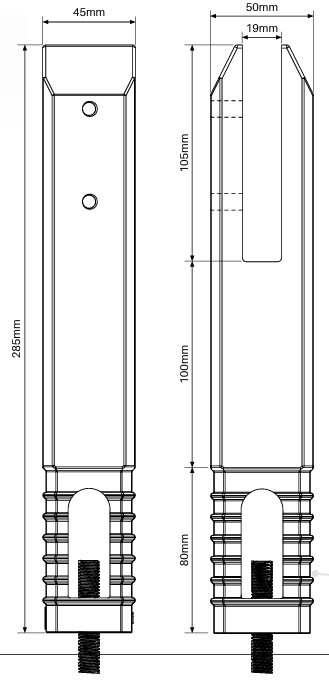

• 285mm long plus M10 height adjustment bolt

Trade tips
Raised dress rings are helpful if grout in the core hole sets slightly above ground level. The slightly tapered finish of the dress ring overcomes this issue.
With an overall height of 285mm plus an added height adjustment bolt, the extended pool madrid range is ideal where extra depth is required for core drilling.
